Services: VPN using iPhone (using l2tp option on the VPN-IP Service)
Feature/Application:
List of IPSec and L2TP client proposals
Procedure: iPhone Configuration
Follow these steps to configure the iPhone to connect to the VPN-IP Service.

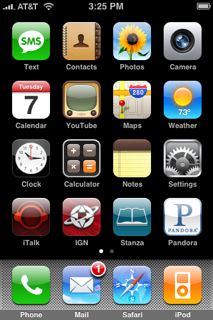

Step 1: From the Home Screen, press the Settings icon
![](UTM_L2TP/KBID6579image1.jpg)
Step 2: Next, select General from the Settings menu.
![](UTM_L2TP/KBID6579image2.jpg)

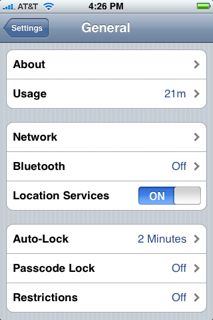

Step 3: From the General menu, select Network.
![](UTM_L2TP/KBID6579image3.jpg)

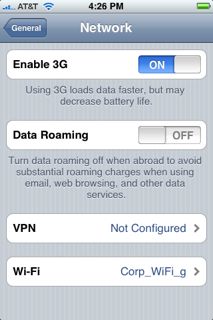

Step 4: In the Network menu, select the VPN option.
![](./UTM_L2TP/KBID6579image3.1.jpg)

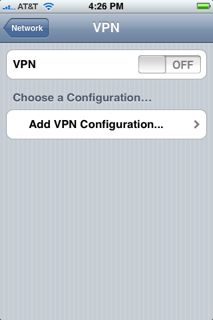

Step 5: In the VPN menu, choose the heading titled, Add VPN Configuration
![](./UTM_L2TP/KBID6579image4.jpg)

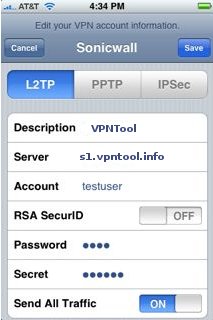

Step 6: In the Add Configuration menu, make sure L2TP is selected.
![](./UTM_L2TP/KBID6579image6.jpg)
Step 7: Fill out the Required fields, then press save when you are done.
• Description: This is a friendly name for your VPN configuration.
• Server: Type s1.vpntool.info
• Account: Type username, given from service subscription sequence on VPN-IP.COM
• RSA SecurID: Not used in this configuration.
• Password: Type password,, given from service subscription sequence on VPN-IP.COM. Then the iPhone will store your password for future connections.
• Secret: This is your pre-shared secret for your VPN connection, type 12345678.
• Send All Traffic: This will allow for either split tunnel or route-all depending on VPN configuration. This example will use the route-all config.
![](./UTM_L2TP/KBID6579image6.jpg)

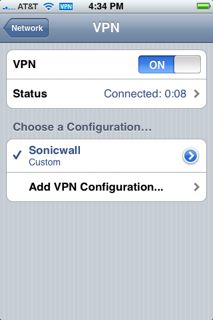

Step 8: The saved configuration will appear on the VPN screen. You can then slide the VPN to the “ON” position, and your iPhone will begin IPSec communication.
![](./UTM_L2TP/KBID6579image7.jpg)
|
